Image filtering (Blurring images)

Blurring image

1) 개요

    - Blur the image by using low-pass filter.

    - Simply this smoothens the image and removes a noises.



2) 방법

ref : http://www.cs.cmu.edu/~16385/lectures/lecture2.pdf

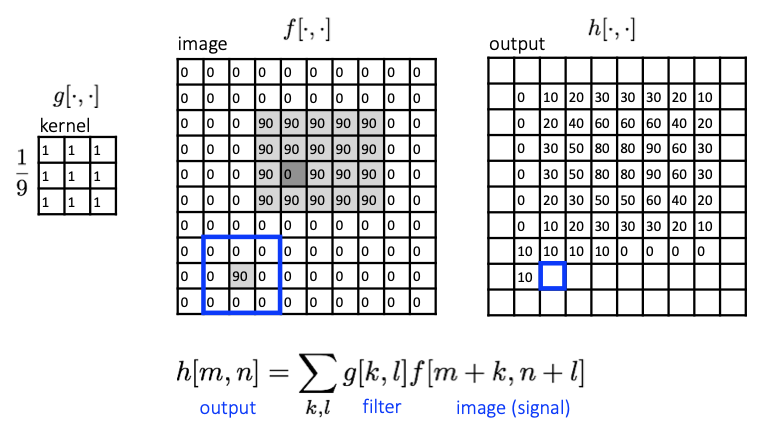

    - The (grayscale) image I is convolved with various kinds of filters. (2D convolution)

ref : http://www.cs.cmu.edu/~16385/lectures/lecture2.pdf

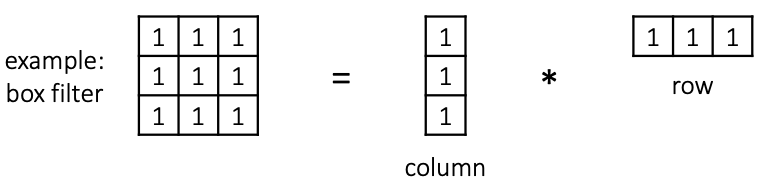

    - 2D convolution with separable filter is equivalent to two 1D convolutions.

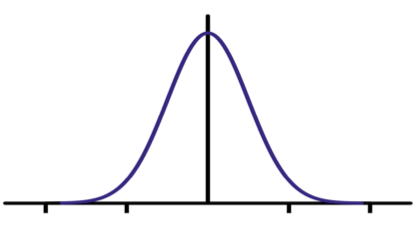

3) Gaussian Filter

$$f(i, j) = \frac{1}{2\pi \sigma^{2}}e^{-\frac{i^{2}+j^{2}}{2\sigma^{2}}}$$

    - Gaussian blurring is used to define an image scale to work in, for interpolation, for computing interest points.

    - It replace current pixel value by weighted average between current pixel and neighbors.

    - Closer neighbor pixel will get higher weights. (weight falls off with distance from center pixel)

    - Cons : Gaussian filter smoothen the edges.



4) Bilateral Filter

    - Non-linear filter to remove noise and preserve the edges. (Not dramatically preserved)

    - Not only using Euclidean distance that Gaussian filter uses, also considers intensity difference.



5) Median Filter

    - Replace neighbor pixels values by median.

    - Effective for salt-and-pepper noise removal.



Example

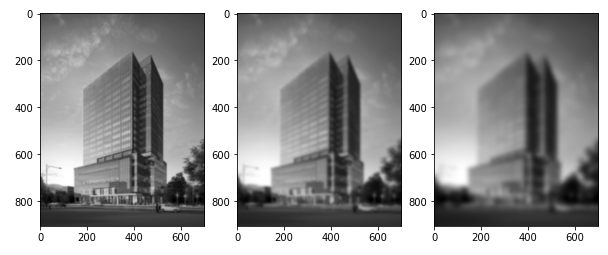

1) SciPy

from scipy.ndimage import filters
from PIL import Image

im = np.array(Image.open('/Users/sejongpyo/Downloads/building.jpg').convert('L'))
std = [2, 5, 10]

f, ax = subplots(1, 3, figsize = (10, 7))
for i, v in enumerate(std):
    ga =filters.gaussian_filter(im, v)
    ax[i].imshow(ga)

plt.show()



2) Opencv

# averaging
dst = cv2.blur(img, (15, 15))

# Gaussian (Positive Odd only for kernel size)
dst = cv2.GaussianBlur(img, (25, 25), sigmaX = 0)

# Median (Positive Odd bigger than 1)
dst = cv2.medianBlur(img, 15)

# Bilateral filtering (src, 고려할 주변 픽셀 지름, sigmaColor, sigmaspace)
dst = cv2.bilateralFilter(img, 9, 75, 75)

---
